Anatomy

The structure of the pickers are the same on all devices, only the font size changes.

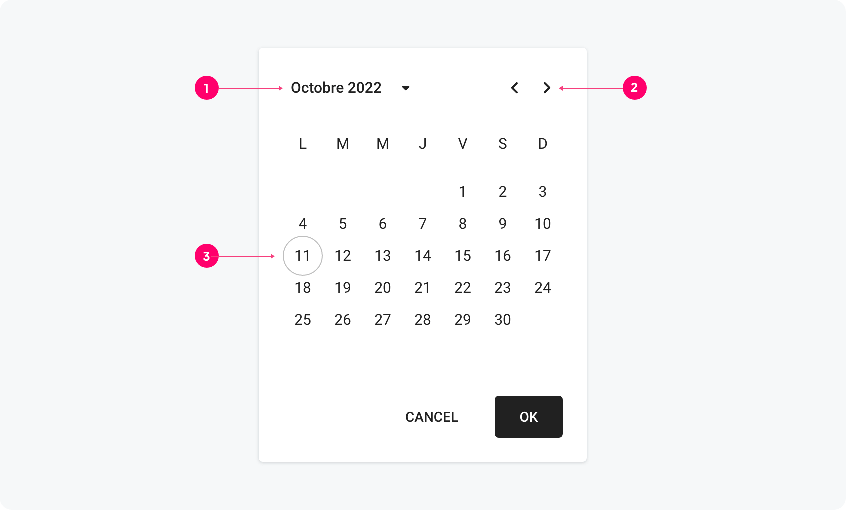

Features:

1. Opens the year picker
2. Switching from one month to the next
3. Highlighting of today's date

Calendar structure

These structures are used for all devices. The green areas represent dynamic areas, where the length of the word can vary.

Please refer to the component inspector at the bottom of the page to examine the component in detail.

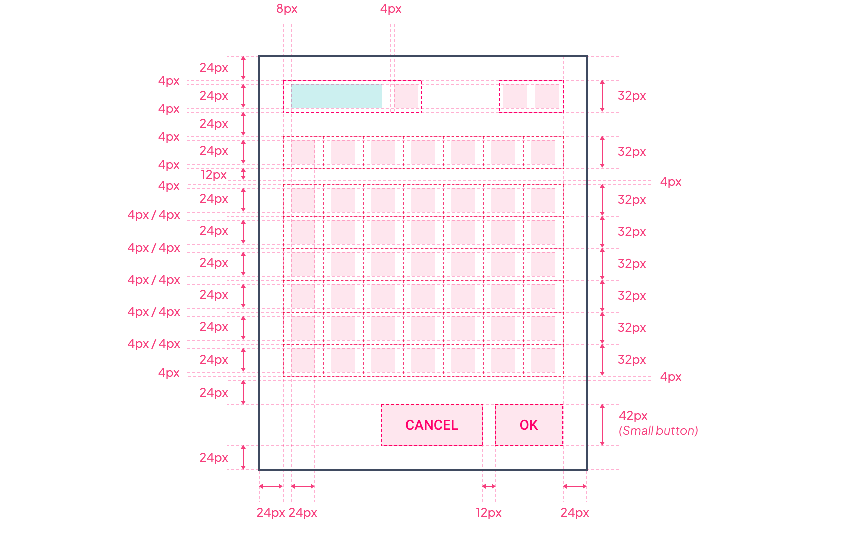

Text blocks, icons and buttons

The illustration below shows the size of the elements and their spacing.

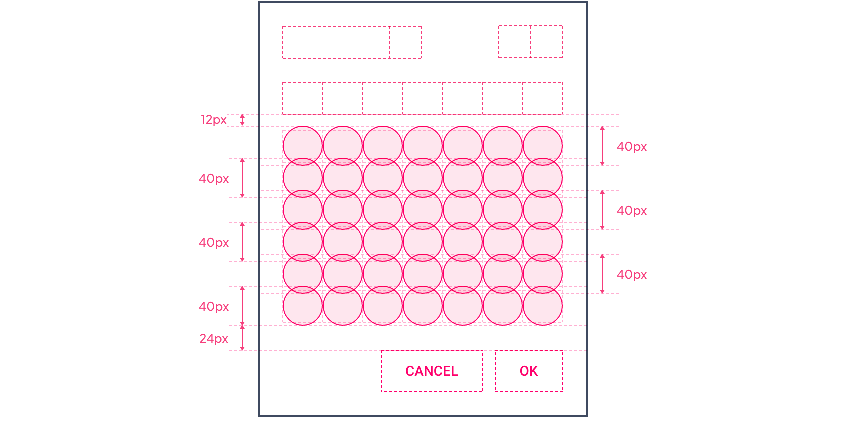

Highlighting of dates

Size of highlights and placement.

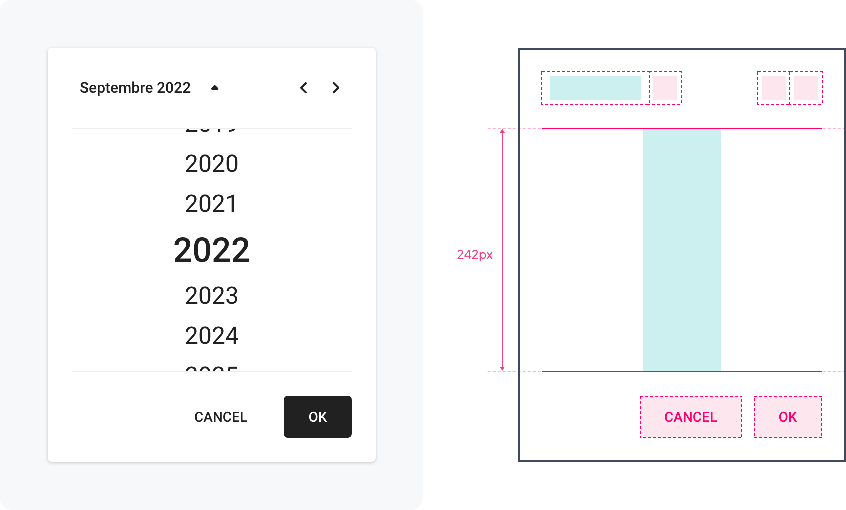

Year picker structure

The green areas represent dynamic areas, where the length of the word can vary.

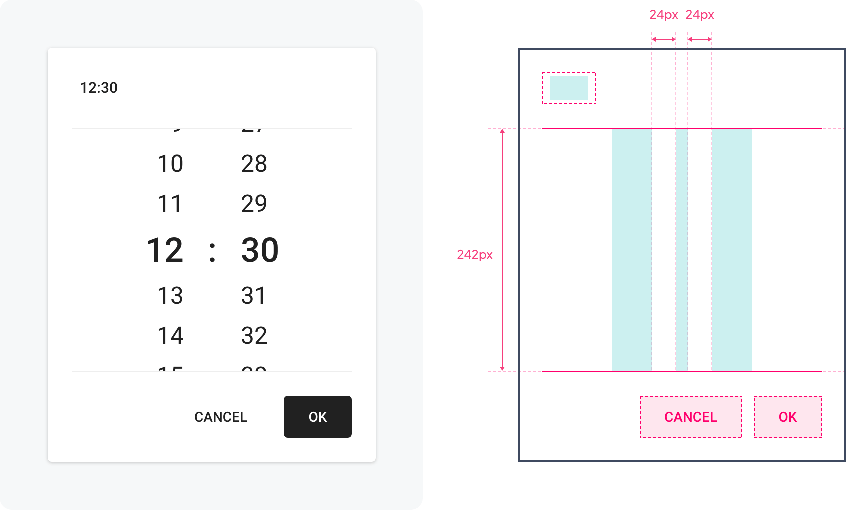

Time picker structure

The green areas represent dynamic areas, where the length of the word can vary.

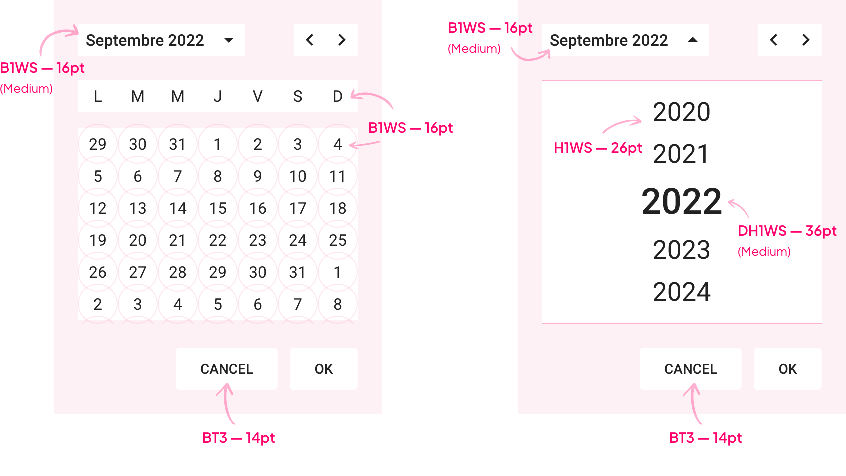

Font Size

The font size changes according to the devices, but not according to the user's choice.

Sizes are : DH1 Small / H1 Small / B1 Small. In the examples below, the font used is Roboto. The size for the hours is the same as the one used here for the years.

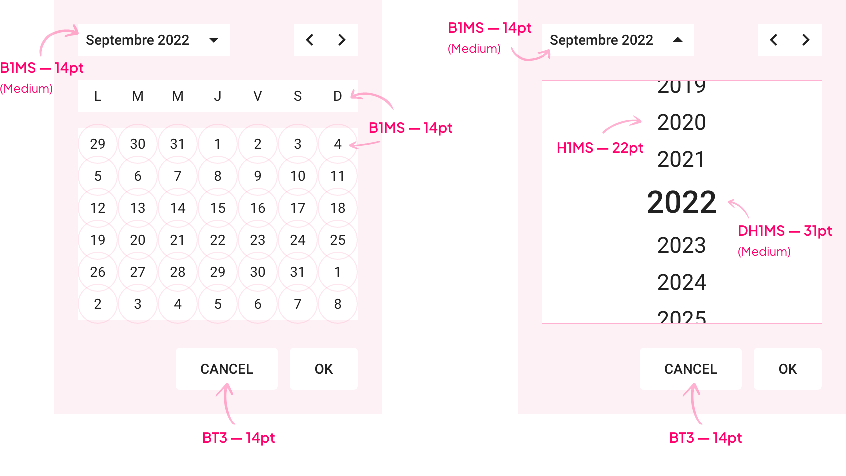

Mobile

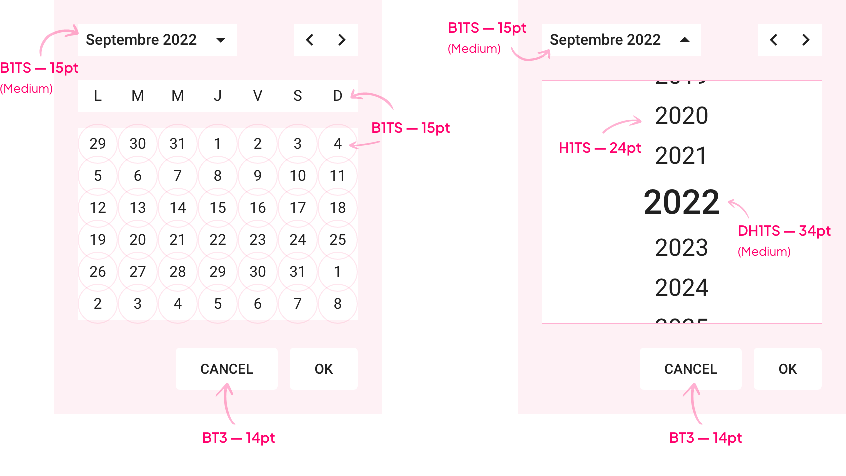

Tablet

Web

Properties

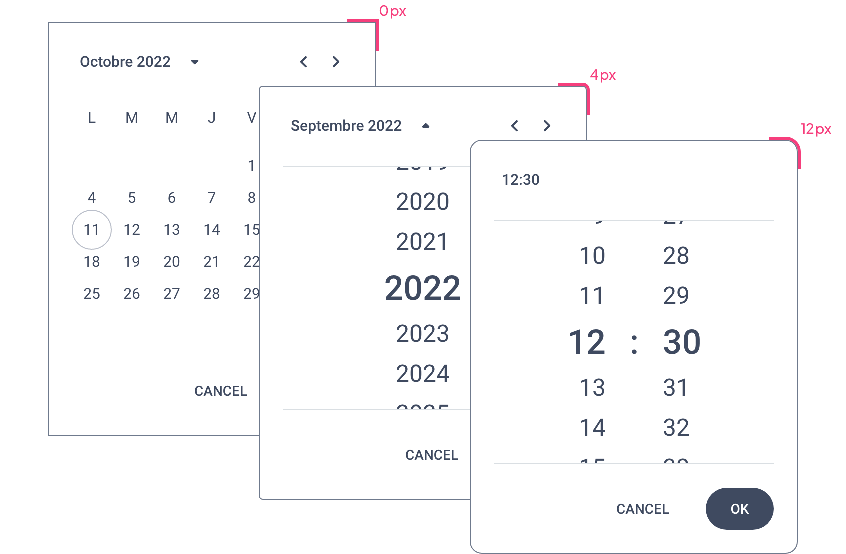

Shape

The Shape atom applied to pickers with the types Sharp / Rounded / Round:

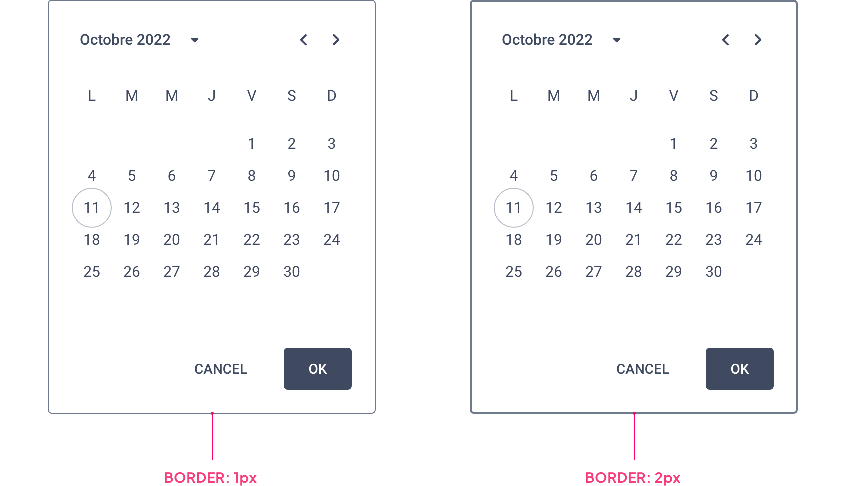

Border

If the Border Atom is applied, its value changes depending on the state of the component. The calendar becomes active as soon as you click on it:

Shadow

Mobile

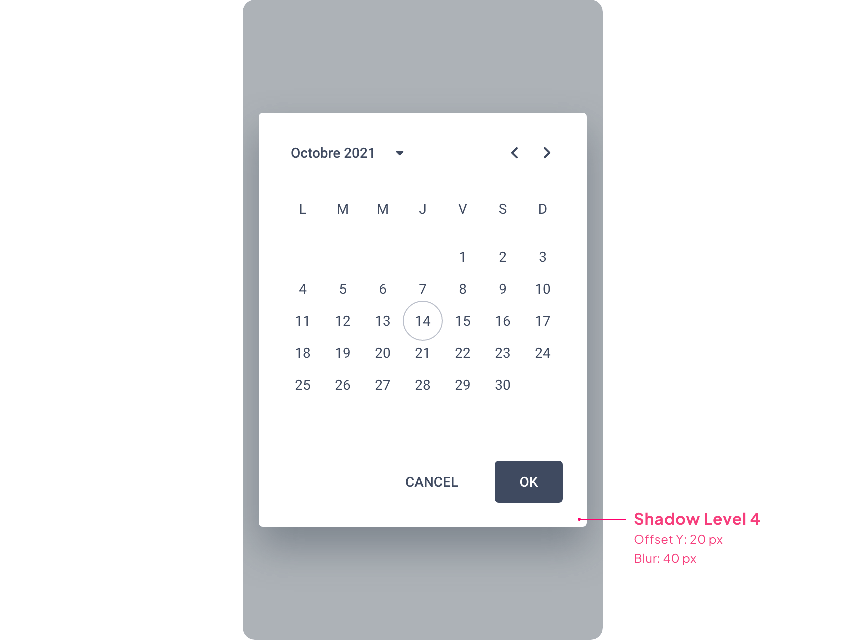

The Calendar component is displayed as a Modal on Mobiles, it then inherits by default the Shadow atom, type Level 4.

Tablet & Web

Below are two examples of combinations of shadow levels to accentuate the elevation effect more or less.
