Mostly used aspect ratio

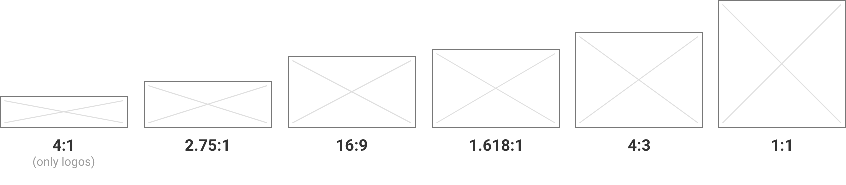

Overview

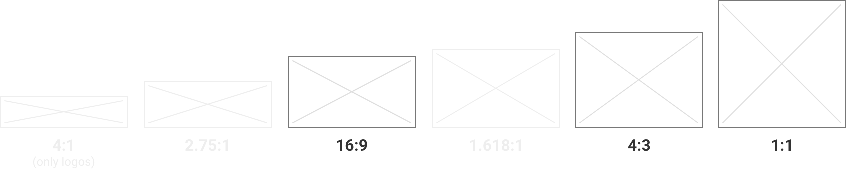

In “views”, the most commonly used ratios are: 2.75:1  16:9  1.618:1  4:3  1:1, the 4:1 format is reserved for the Logos.

Thumbnails aspect ratio

The user has control over the choice of the thumbnail format (examples : images in a list, widgets, headlines etc.). He can choose between: 16:9   4:3   1:1

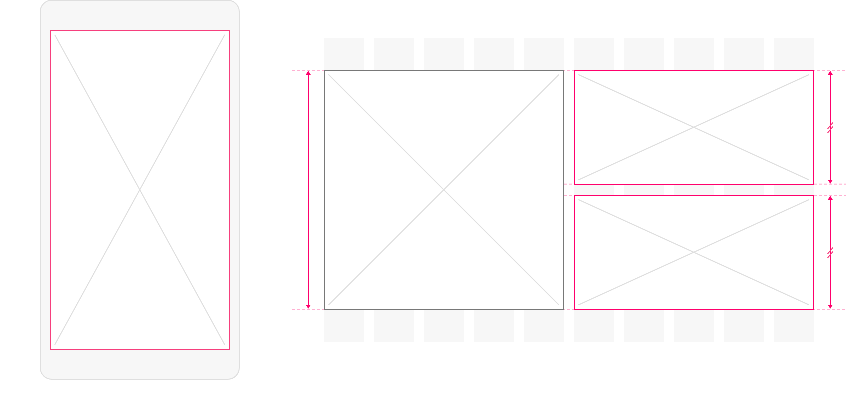

Relative aspect ratio

In this case, the aspect ratio of an image may depend on the device on which it is displayed, or on another image or its environment.

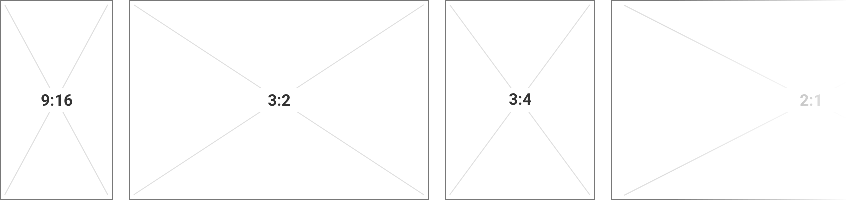

Original aspect ratio

Here, we keep the original width-height ratio of an imported image.

This concerns images in certain lists, such as photo templates, but also images in the body of articles (detail), images in the submit section etc.

This feature allows the display of a photo taken in portrait mode in particular.

Categories & Uses

Headers & Headlines

The Headers are at the top of the Detail sections, the Headlines are the images highlighted in the Sections and List type Widgets.

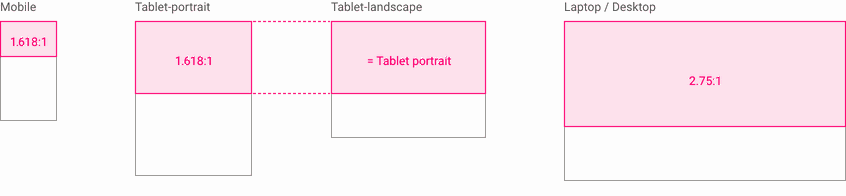

Most common configuration

• Mobile, Tablet portrait: 1.618:1 (Golden ratio)
• Tablet landscape: Relative (= to image height in Tablet-portrait mode)
• Laptop, Desktop: 2.75:1

Variations

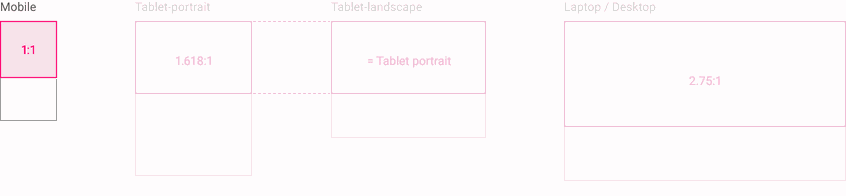

In this first variation, only the Mobile ratio changes and becomes square.

Widget Event List Une Classic, Section Event Detail, Section Article List Visuel for example.

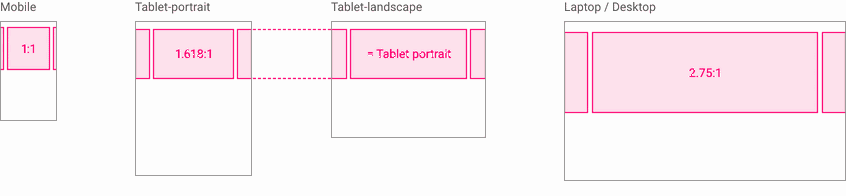

In the variant below, we have the same organization as above but the layout is slightly different to create the carousel.

We find this in the Widget Navigation Banner Small Carrousel.

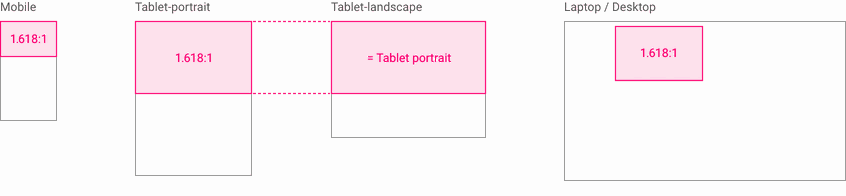

This last variation concerns Headlines. In Web, the image no longer occupies the totality of the width: the Headline (image + text) takes 2 columns.

The version with margins works slightly differently: the Headline comes to match the width of the content in Mobile and Tablet.

Example : Widget et Section Article List ClassicUne.

Thumbnails

Thumbnails are the preview images present in the vast majority of lists. Their size will be affected by the choice set by the user, but some templates will escape this rule.

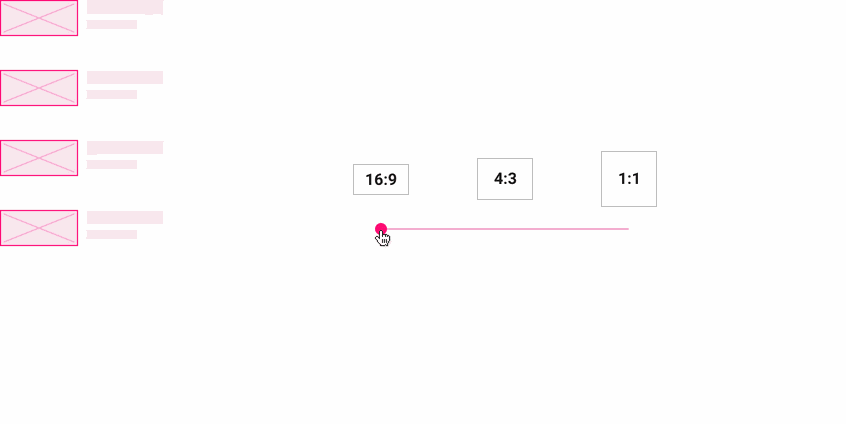

Users selected ratios

In some templates, the user will be able to choose among these 3 predefined ratios for the size of the preview thumbnails 16:9  4:3  1:1

Examples : Widget Article List Une Classic, List Classic, Banner Classic...

“System” ratios

Here we are talking about thumbnail sizes that are not influenced by the user's choice as some templates do not allow this.

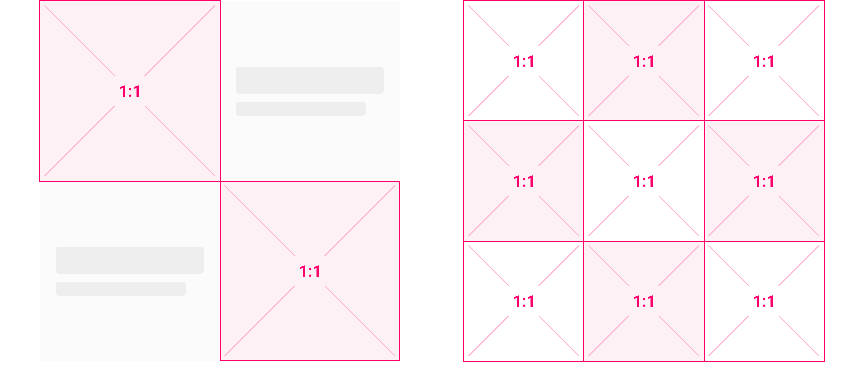

• Square thumbnails → The ratio used is 1:1 on all devices.
  Examples : Section Article List Checkerboard, Section Photo List Square

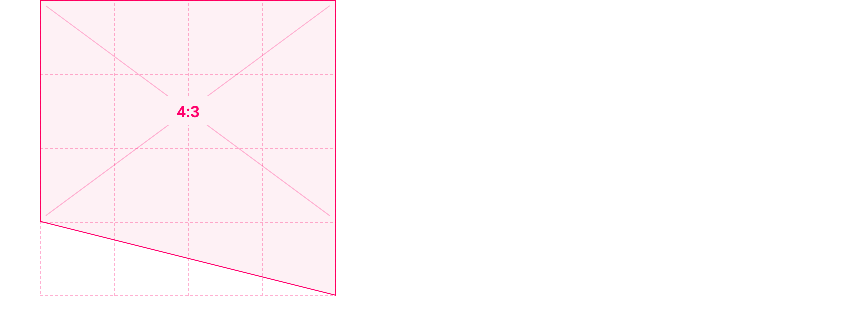

• Split thumbnails → In this case, the base of the thumbnail is square and we split at the 3rd third.
  Example: Event List Split section

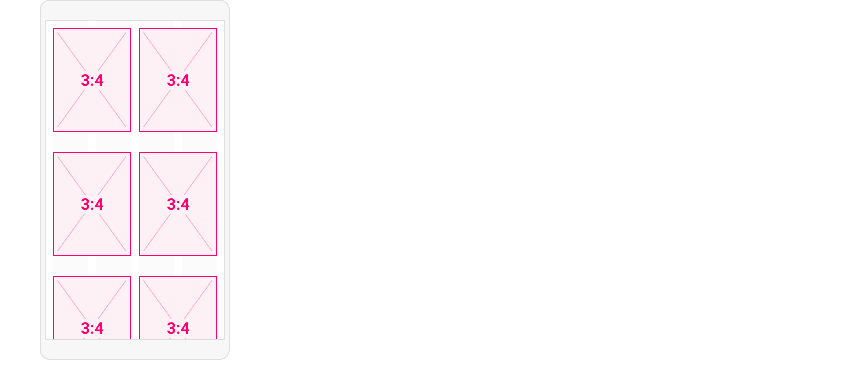

• 3:4 thumbnails → In some grid type templates, we cheat a little by reversing the 4:3 ratio.
  Examples: Widgets Navigation List Grid, Section Multilevel Grid

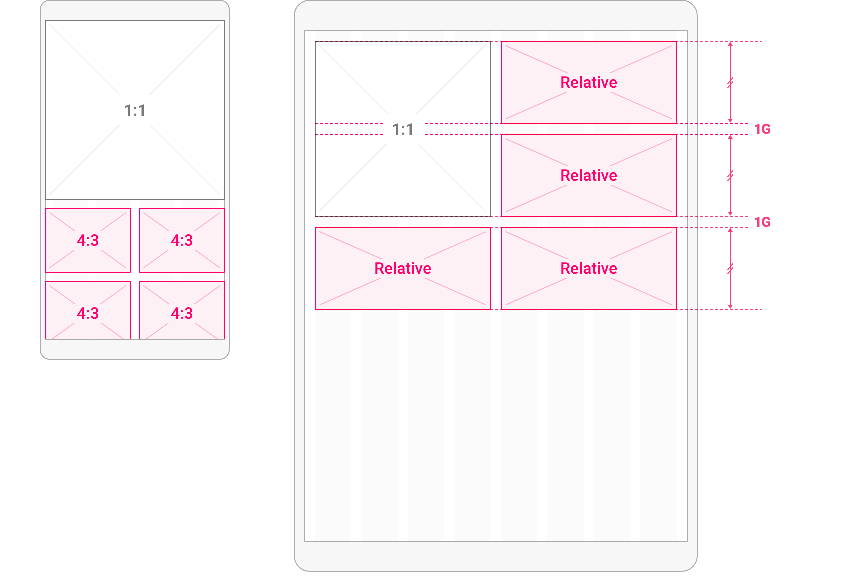

• Relative size thumbnails → Many sections and Highlight widgets are affected. In the example below the size of the thumbnail is relative to the size of the Headline , but only for Tablet and Web. Indeed, in Mobile the cascade layout allows to use the size chosen by the user
  Examples: Widget Article Highlight Une Grid, Section Multilevel Une Grid

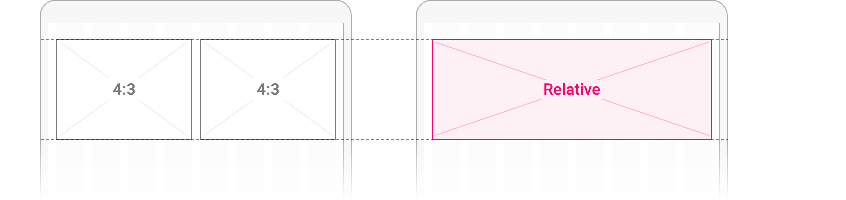

  In this other case, the height will be relative to the ratio chosen by the user.
  Examples : Widgets Navigation ListVisual, Sections Multilevel Visuels


Please see the Thumbnail component section for more information about this component.

Original size images

We are talking about imported images that will not be cropped.

An image imported into a Section Detail feed will keep its original ratio. This is also the case for images imported from the Submit or Twitter sections.

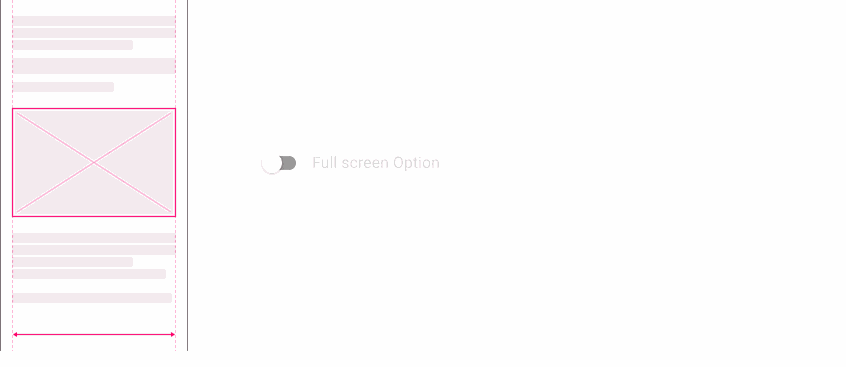

Sections Details & the full width option

In the thread of a detail section the user has the possibility to display their image in full width, the image will not be aligned on the content and it will take the whole width of the page:

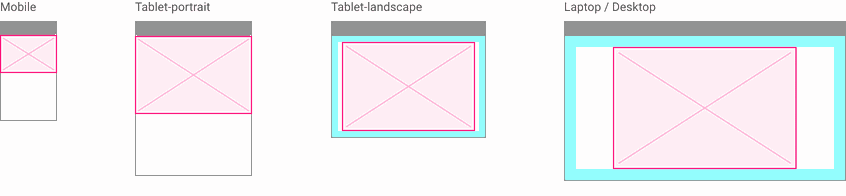

Section Photo Detail

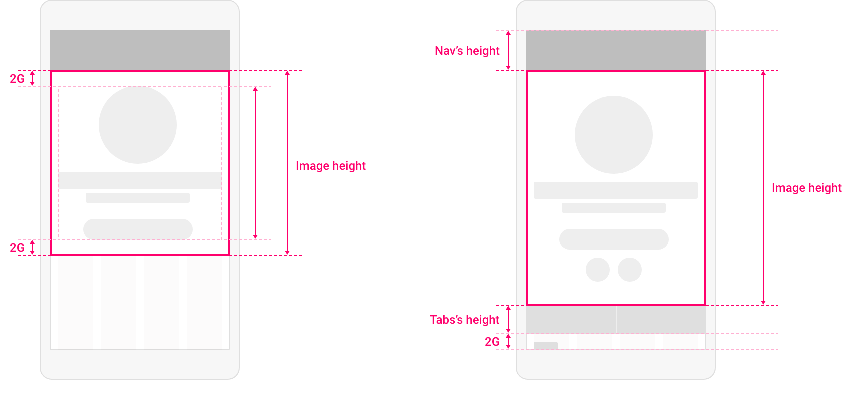

In this template, we want the image to occupy a maximum of the visible area on each screen while maintaining the original ratio of the photo.

• In Mobile and Tablet portrait, we use the full width of the screen.
• On other media, we will rely on a safe area to contain the image in the visible area.

Videos

A video will be viewed at its original size in the Video Detail section:

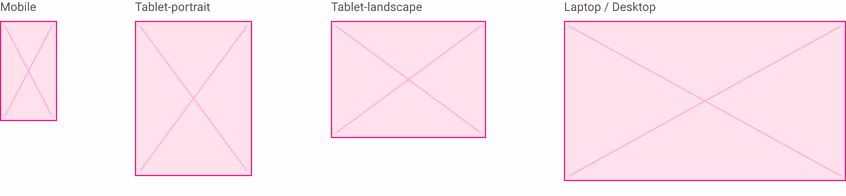

Full page image

The image occupies the entire space and its size will therefore necessarily be relative to the devices .
Examples : Widget Article Banner Minimal, Section Multilevel SlideShow...

Specific components

Avatars and logos are images, but also components in their own right.

Avatars

Whatever the style assigned to an avatar (square, rounded or round) its base will be square

Logos

The ratios used for these elements will be 1:1 or 4:1.
