Anatomy

Common design principles

Like Textfield, the Dropdown component comes in 3 sizes (Small, Medium, Large) and 2 types (Title UP and Title IN), however, some design principles are common to all these variations :

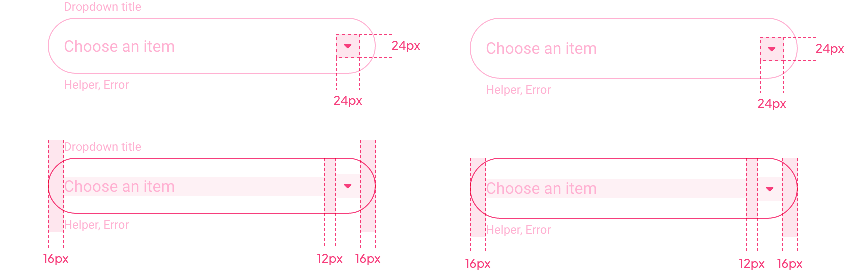

Inactive state

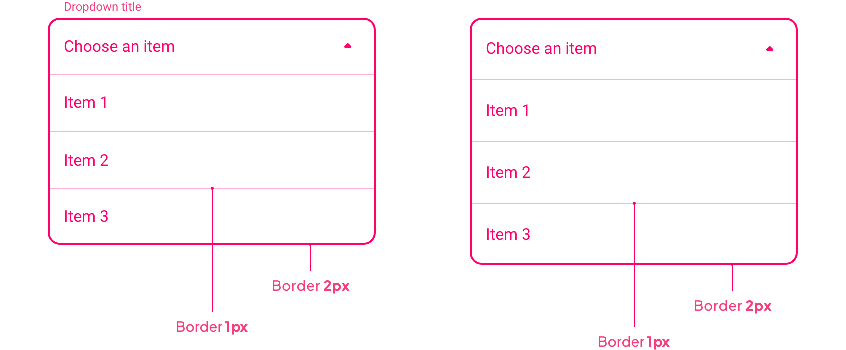

Focus state

Complete state

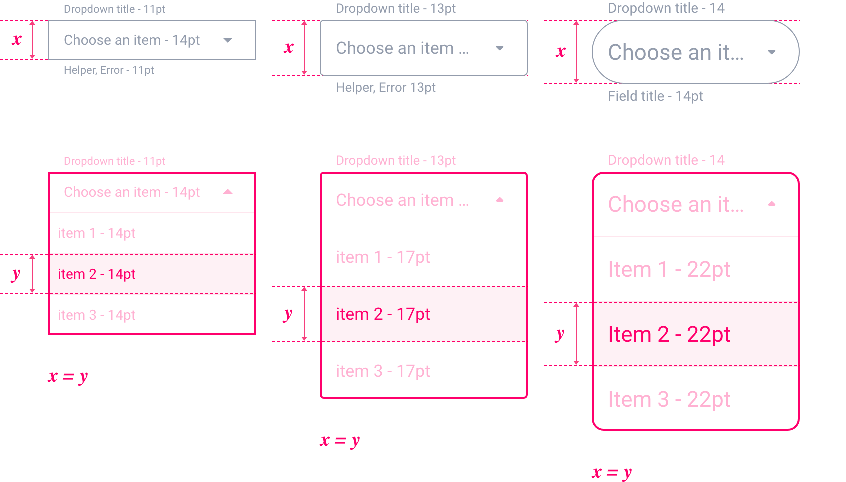

Component height

All field heights in a row are described in the Text Field section ( Title UP Title IN). The Dropdown component uses these field heights for the state Disabled / Inactive / Complete / Error.

For the Focus and Focuserror states, the height of the base field is used for the list items:

Title UP

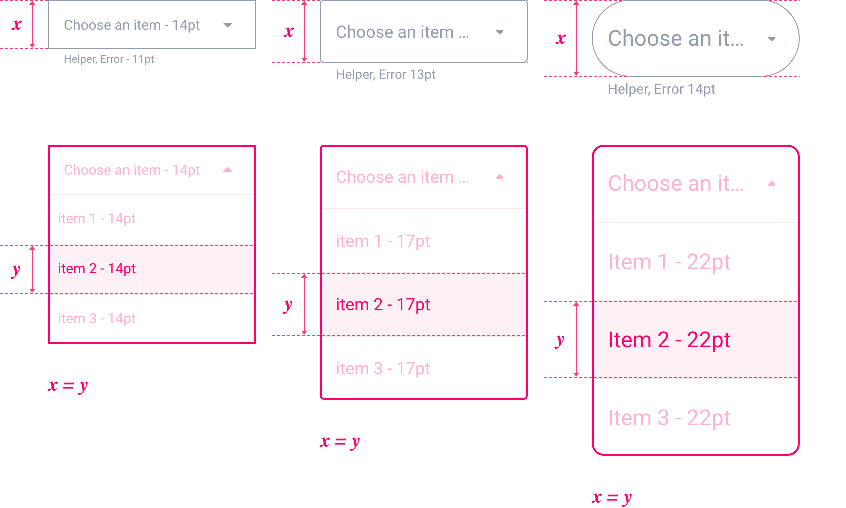

Title IN

Font Size

The Font size changes depending on the devices and the choice of the component size. You can have an overview of all used sizes at the bottom of the Text Field section.

Properties

Shape

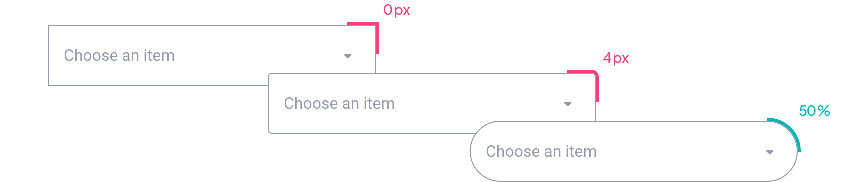

Below, the Shape atom applied with the types Sharp / Rounded / Round for the states Disabled, Inactive, Complete and Error:

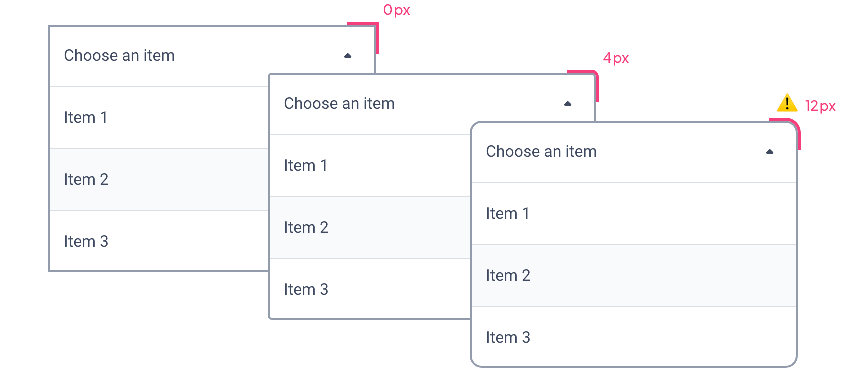

For Focus and Focus Error states in Round, we go from a radius of 50% of the component height to 12px.

⚠️　Round Shape Specificities

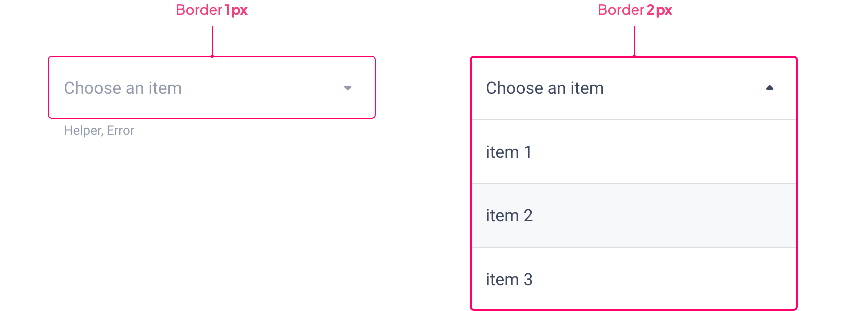

Border

By default, the Border Atom value is 1px for all states except Focus.

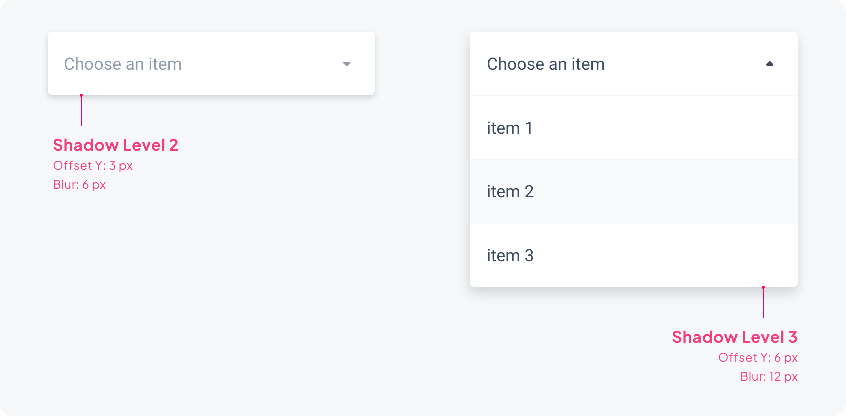

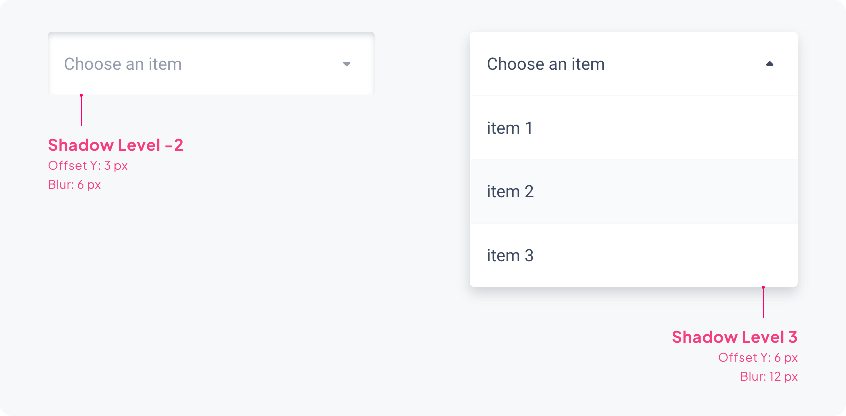

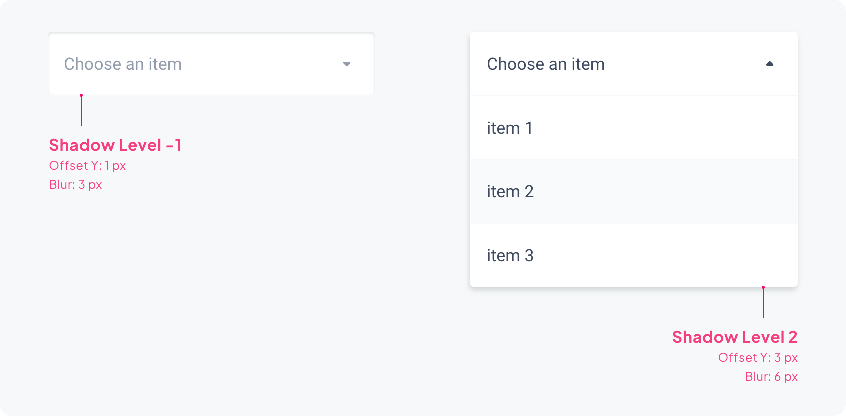

Shadow

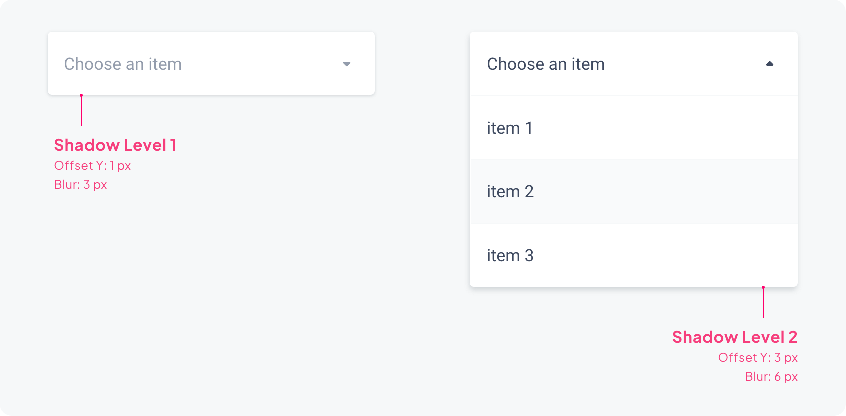

The Shadow level changes for the Focus and Focus Errorstates: in fact, we go to the higher level to accentuate the elevation and thus highlight the activated component.

⚠️　Please note that the Inner Shadow option is not available for Focus and Focus Error.

Layout

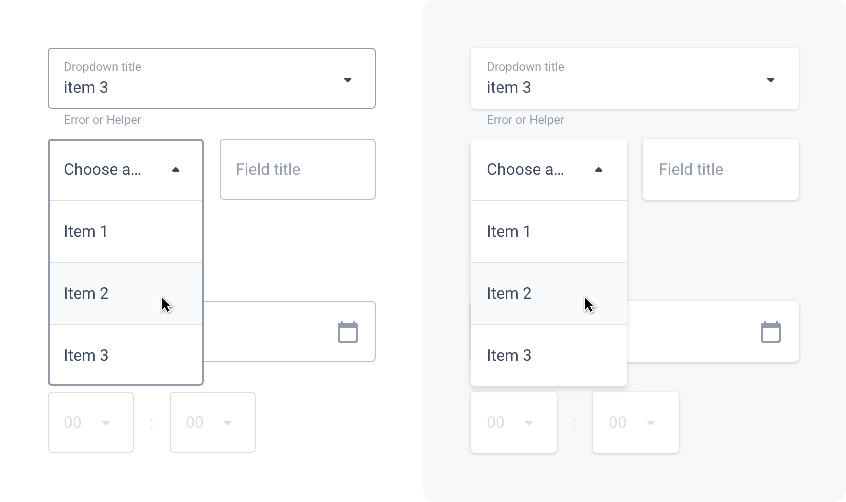

Overlapping

As we’ve just seen, the Border and Shadow properties change with the Focus state. This allows the active component to be highlighted, especially when the elements overlap as below:

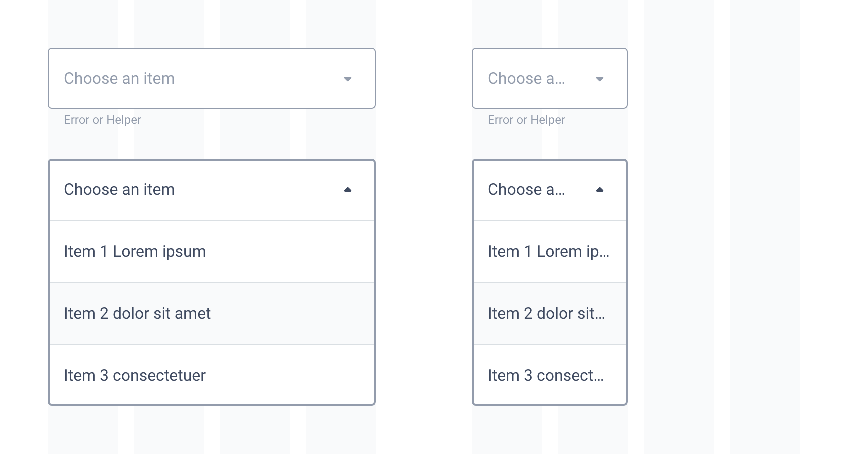

Overflow

When the text of the component is larger than the allocated space, ellipses are used.

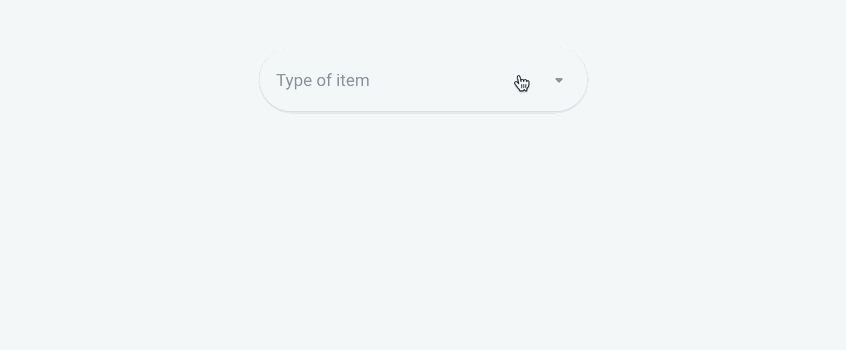

Behavior

States (Complete path)

Disabled

Inactive

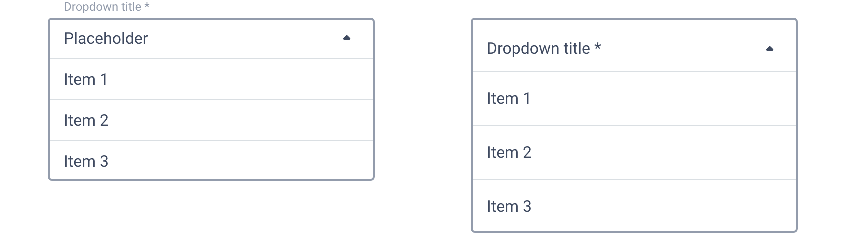

Focus

Hover

Complete

Error

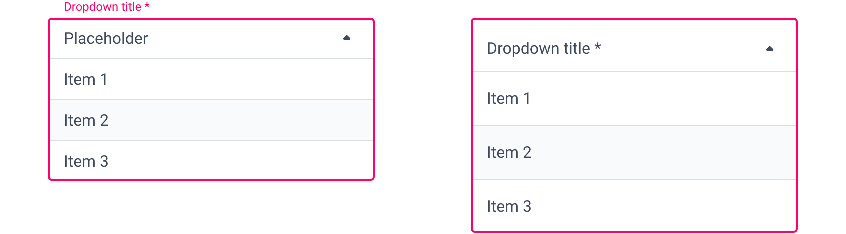

Error Focus

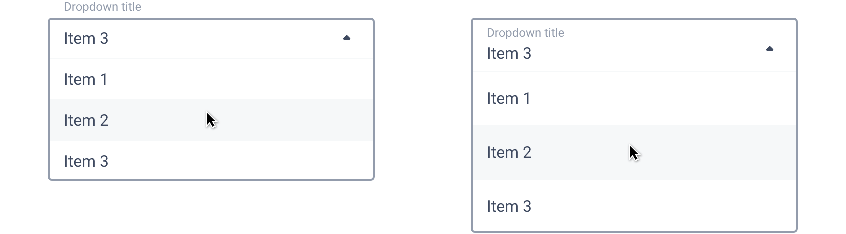

States (Pre-selection)

Inactive

Focus

Complete
