Text Field

The Text Field component is a fundamental element in any design system, as it allows users to input and submit text-based information. It is a versatile component that can be used in a variety of contexts, from forms and surveys to search bars and chat interfaces.

The Text Field component in the GoodBarber design system likely includes a variety of different options to suit different use cases, such as different sizes and types, as well as support for multiple lines of text. Additionally, it likely follows a consistent set of design principles to ensure that it looks and feels like a cohesive part of your app design, including things like consistent spacing.

Anatomy

The Text Field component exists in 3 sizes (Small, Medium, Large) and 2 types (Title UP and Title IN). It can be on 1 line or several lines. Despite the many variations of the component, some design principles are constant.

Title UP

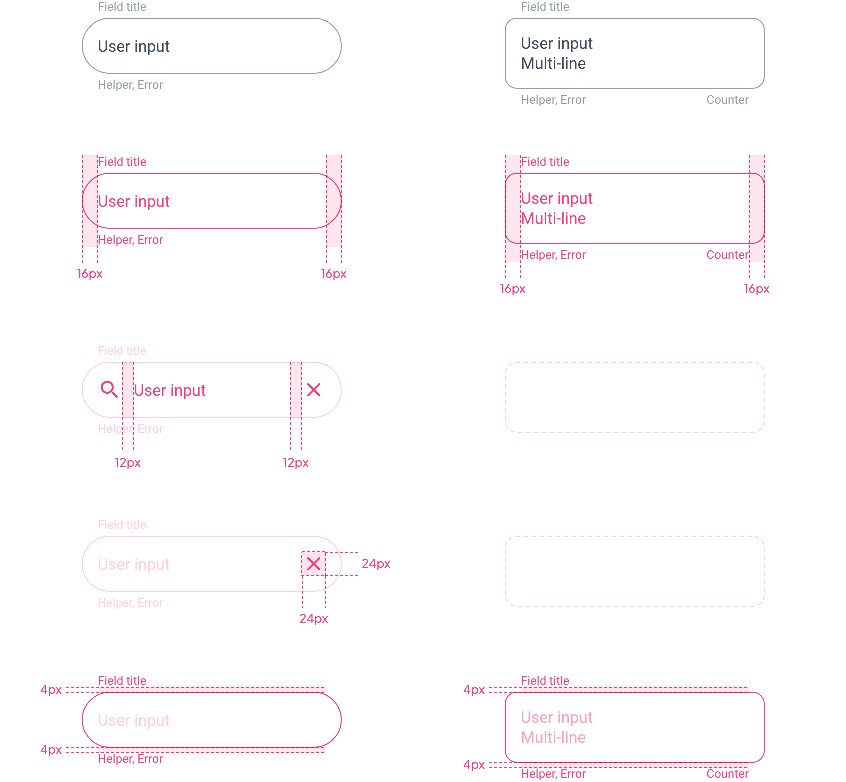

Common design principles

The spacing and the size of the icons are the same for the 3 sizes of the component:

Single Line	Multi-Line
↓	↓

Single and multi-line text fields in Title-Up layout

Field Height: Single Line

For this Title UP version of the component, the height of the field does not vary according to the content, but according to the size chosen (Small, Medium or Large).

Mobile	Tablet	Web
↓	↓	↓

Small
Small single text field in Title-Up layout

Small single text field in Title-Up layout

Medium
Medium single text field in Title-Up layout

Medium single text field in Title-Up layout

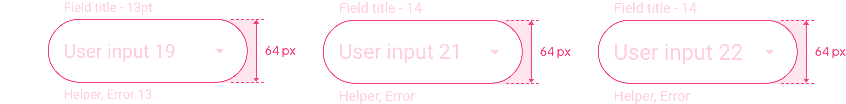

Large
Large single text field in Title-Up layout

Large single text field in Title-Up layout

Field Height: Multi-Line

The height of the field depends here on its content. We add a top and bottom padding whose value depends on the chosen field size:

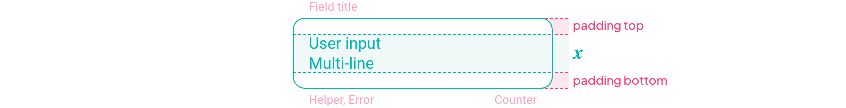

Height and padding of a multi-line text field in Title-Up layout


Small	Padding Top / Bottom	▸	12 px
Medium	Padding Top / Bottom	▸	16 px
Large	Padding Top / Bottom	▸	20 px

Mobile	Tablet	Web
↓	↓	↓

Small

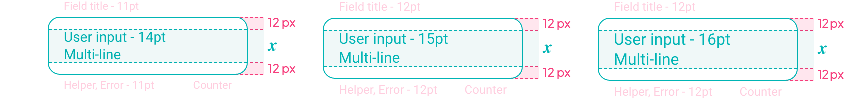

Small multi-line text field in Title-Up layout

Small multi-line text field in Title-Up layout

Medium

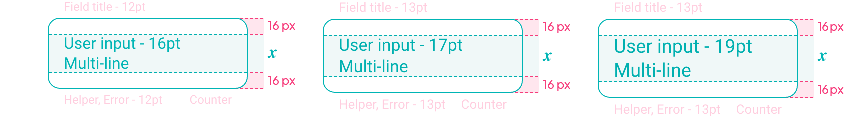

Medium multi-line text field in Title-Up layout

Medium multi-line text field in Title-Up layout

Large

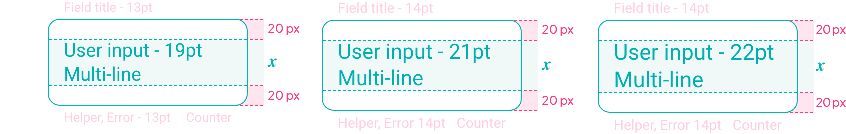

Large multi-line text field in Title-Up layout

Large multi-line text field in Title-Up layout

Title IN

Common design principles

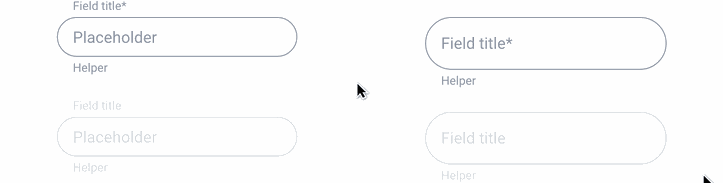

The spacing and the size of the icons are the same for the 3 sizes of the component but for this Title IN version, the display changes according to the state of the component:

Disabled / Inactive → Field Title
Focus / Complete / Error → Field Title + User input

Single Line	Multi-Line
↓	↓

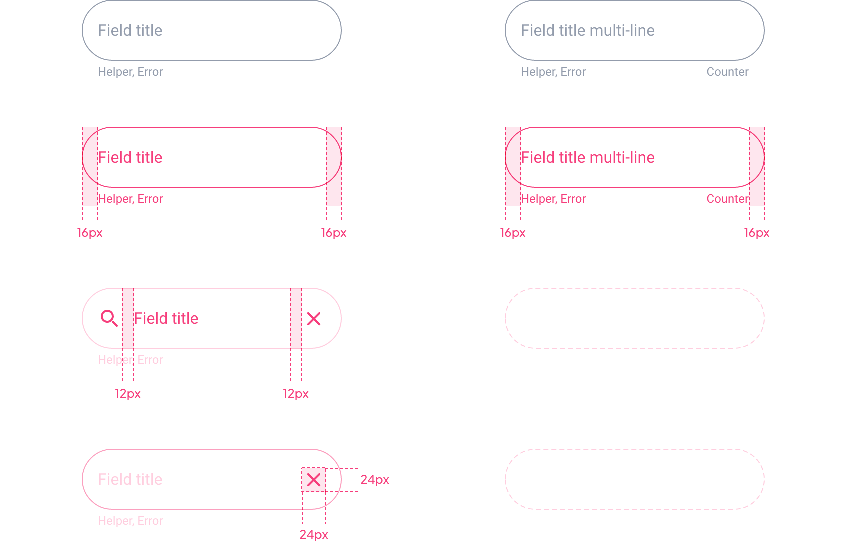

Disabled / Inactive states
Display in Disabled / Inactive states in Title-In layout

Display in Disabled / Inactive states in Title-In layout

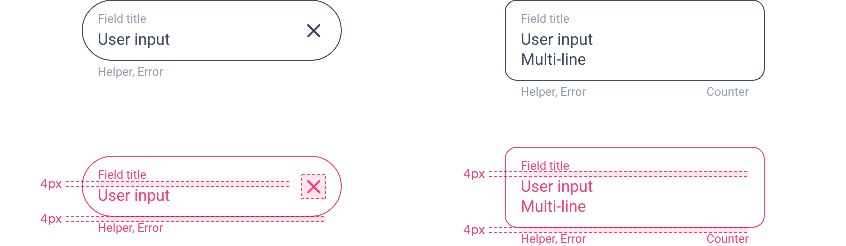

Focus / Complete / Error states
Display in Focus / Complete / Error states in Title-In layout

Display in Focus / Complete / Error states in Title-In layout

Field Height: Single Line

For the Disabled and Inactive states, only the Field Title appears, however, the height of the field will be that of the Focus, Complete and Error state which include the Field title and the User input:

Single line text field height in Title-In layout

Mobile	Tablet	Web
↓	↓	↓

Small
Small single line text field in Title-In layout

Small single line text field in Title-In layout

Medium
Small single line text field in Title-In layout

Small single line text field in Title-In layout

Large
Small single line text field in Title-In layout

Small single line text field in Title-In layout

Field Height: Multi-Line

The top/bottom padding value depends on the chosen field size:

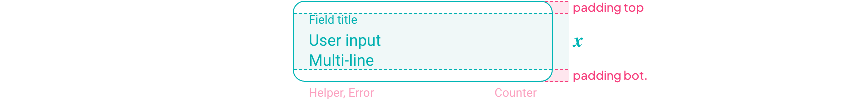

Multi-line text field height in Title-In layout


Small	Padding Top / Bottom*	▸	8 px
Medium	Padding Top / Bottom	▸	12 px
LArge	Padding Top / Bottom	▸	16 px

Mobile	Tablet	Web
↓	↓	↓

Small
Small multi-line text field in Title-In layout

Small multi-line text field in Title-In layout

Medium

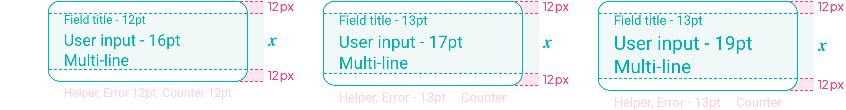

Medium multi-line text field in Title-In layout

Medium multi-line text field in Title-In layout

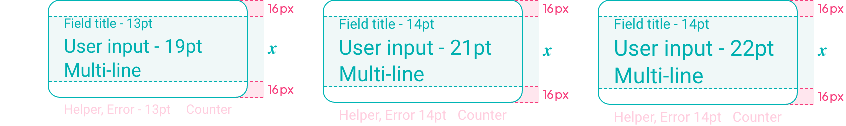

Large
Large multi-line text field in Title-In layout

Large multi-line text field in Title-In layout

Properties

Shape

Below, the Shape atom applied with the types Sharp / Rounded / Round for the fields on 1 line:

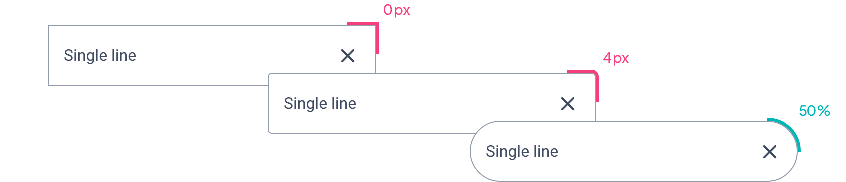

Shape on single line text field

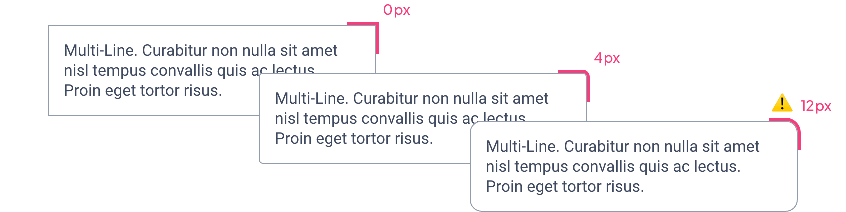

When we have several lines, we go from a radius of 50% of the height of the component to 12px.

Shape on multi-line text field

⚠️　Round Shape Specificities

Border

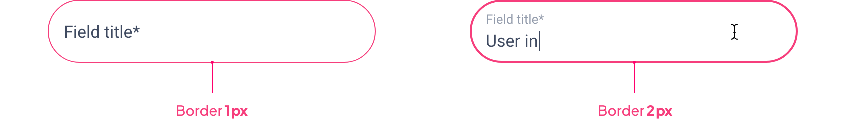

By default, the Border Atom value is 1px for all states except Focus and Focus Error:

Disabled / Inactive / Complete / Error	Focus / Focus Error
↓	↓

Border on field state

Shadow

The Shadow level changes for the Focus and Focus Errorstate: in fact, we go to the higher level to accentuate the elevation and thus highlight the activated component.

⚠️　Caution, the Inner Shadow option is not available for Focus and Focus Error, we will use Drop Shadow.

Disabled / Inactive / Complete / Error	Focus / Focus Error
↓	↓

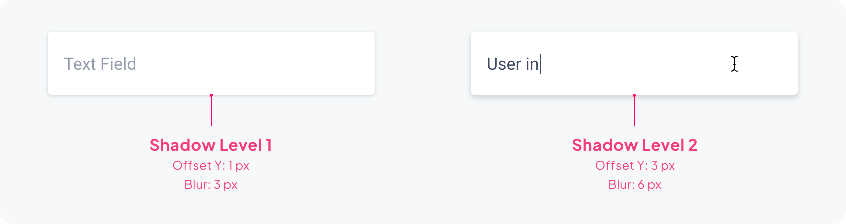

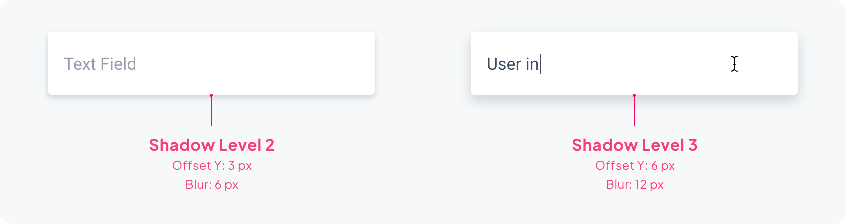

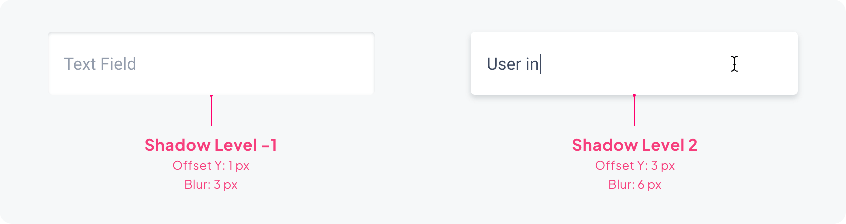

Drop shadow level 1&2 on field

Drop shadow according field state

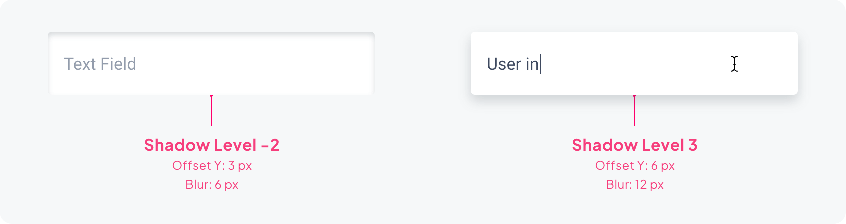

Mix Inner & Drop shadow according field state

Mix levels of Inner & Drop shadow according field state

Layout

Form

Depending on the device, the layout of a Text Field associated with a button may vary.

On Mobile, the 2 components are one on top of the other because of the lack of space. The button occupies the whole width of the page :

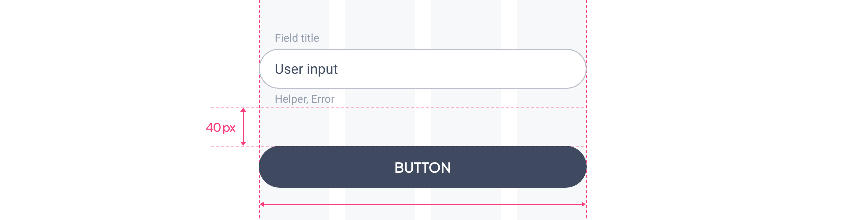

Form spacing on mobile

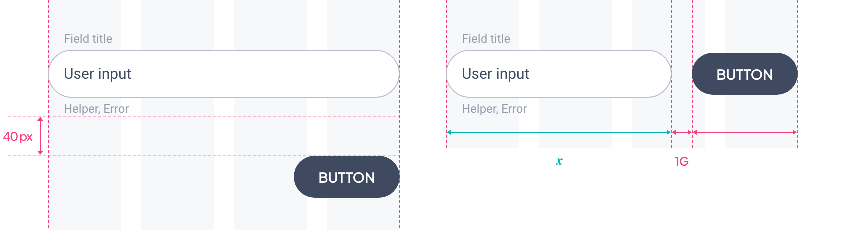

On Tablet and Web, if the 2 components are one above the other the button will have its minimum length. If they are on the same line, the Text Field occupies the space left by the button:

Form spacing on tablet and desktop
